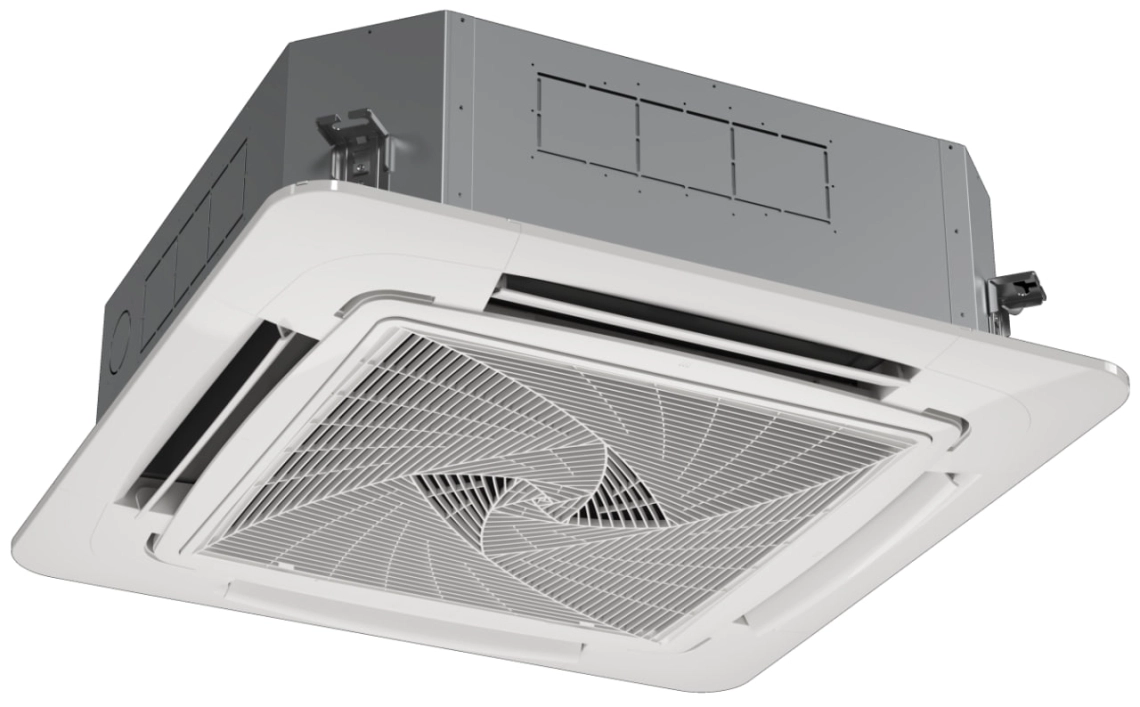

Round-Way cassette
Cooling capacity: 2.2 ...16 kW
Heating capacity: 2.5 ...18 kW
Want to buy or have questions?
Key features:
- 4 body sizes: 07-18, 24-30, 38 і 48-60
- 360 °C circular air distribution
- Independent control of each louver
- Ø 75 mm opening for fresh air inlet
- Drainage pump with a lifting height of up to 600 mm
- BLDC fan motor
- Possibility of control by IR remote control
- Standard panel (-QB) with antibacterial filter with silver ions
- Concealed display with changing display color depending on the operating mode
- New communication protocol “1192” (support for power supply of the ERV)
- New “X-Y” interface for 300 series wired controllers
- New wired controllers MWI-R301AFK, MWI-R316AFK (X-Y interface)
Four-way independent airflow
Individual louvers control allows users to precisely manage the direction of airflow in four different directions.

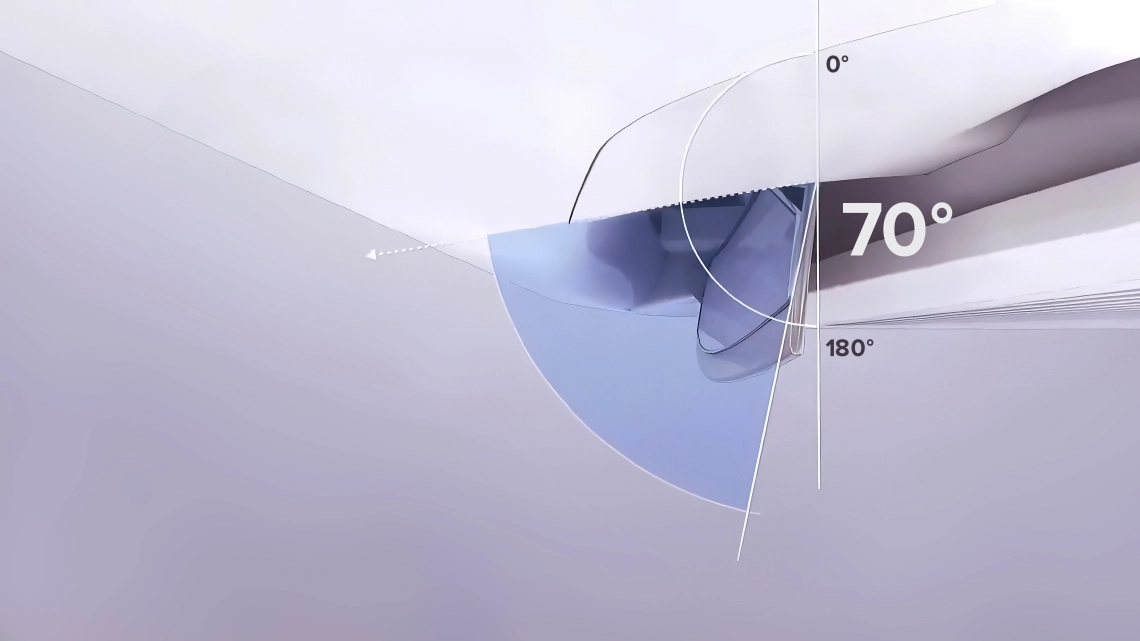

Wide opening angle range
With adjustable louvers and multiple fan speed settings, users can customize the direction and intensity of airflow.
Technical specifications
| Model | MIBN-07X2EV1AD(L) | MIBN-09X2EV1AD(L) | MIBN-12X2EV1AD(L) | MIBN-16X2EV1AD(L) | MIBN-18X2EV1AD(L) | MIBN-24X2EV1AD(L) | |
| Capacity | |||||||
| Cooling | kW | 2,20 | 2,80 | 3,60 | 4,50 | 5,60 | 7,10 |
| Heating | kW | 2,50 | 3,20 | 4,00 | 5,00 | 6.30 | 8.00 |
| Electrical Parameters | |||||||
| Power supply | Ph/V/Hz | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) |
| Ventilation | |||||||
| Airflow (L/M/H) | m³/h | 1100/750/550 | 1100/750/550 | 1100/850/550 | 1200/850/550 | 1200/850/550 | 1500/1000/610 |
| Sound pressure (L/M/H) | dB(A) | 30/27/25 | 30/27/25 | 30/27/25 | 32/29/25 | 33/29/25 | 35/32/28 |
| Installation - Dimensions | |||||||
| Net dimensions (W×D×H) | mm | 840*840*180 | 840*840*180 | 840*840*180 | 840*840*180 | 840*840*180 | 840*840*204 |
| Packaged unit dimensions (WxDxH) | mm | 978*978*247 | 978*978*247 | 978*978*247 | 978*978*247 | 978*978*247 | 978*978*269 |
| Net/gross weight | Kg | 19.0/24.0 | 19.0/24.0 | 21.0/26.0 | 21.0/26.0 | 21.0/26.0 | 22/27 |
| Ø Liquid pipe | mm (inch) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 9,52 (3/8) |
| Ø Gas pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 15,88 (5/8) |
| Panel | |||||||
| Model | MB-950QB | MB-950QB | MB-950QB | MB-950QB | MB-950QB | MB-950QB | |
| Panel Net dimensions (WxDxH) | mm | 950x950x50 | 950x950x50 | 950x950x50 | 950x950x50 | 950х950х50 | 950x950x50 |
| Panel Packaging dimensions (WxDxH) | mm | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 |
| Panel Net/gross weight | Kg | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 |
| Model | MIBN-28X2EV1AD(L) | MIBN-30X2EV1AD(L) | MIBN-38X2EV1AD(L) | MIBN-48X2EV1AD(L) | MIBN-60X2EV1AD(L) | |
| Capacity | ||||||
| Cooling | kW | 8.0 | 9.0 | 11.20 | 14. 0 | 16.0 |
| Heating | kW | 9.50 | 10.0 | 12.50 | 16.00 | 18.0 |
| Electrical Parameters | ||||||
| Power supply | Ph/V/Hz | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) | 1/220-240/50/(60) |
| Ventilation | ||||||
| Air flow (H/M/L) | m³/h | 1500/1050/650 | 1500/1050/650 | 1500/1050/650 | 1500/1050/650 | 1500/1050/650 |
| Sound pressure (L/M/H) | dB(A) | 51/47/42 | 51/47/42 | 53/48/44 | 58/53/46 | 58/53/46 |
| Installation - Dimensions | ||||||
| Net dimensions (W×D×H) | mm | 840*840*204 | 840*840*204 | 840*840*246 | 840*840*288 | 840*840*288 |
| Packaged unit dimensions (WxDxH) | mm | 978*978*269 | 978*978*269 | 978*978*312 | 978*978*353 | 978*978*353 |
| Net/gross weight | Kg | 22.0/27.0 | 22.0/27.0 | 25.0/31.0 | 26.0/32.0 | 26.0/32.0 |
| Ø Liquid pipe | mm (inch) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) |
| Ø Gas pipe | mm (inch) | 15,88 | 15,88 | 15,88 | 15,88 | 15,88 |
| Panel | ||||||
| Model | MB-950QB | MB-950QB | MB-950QB | MB-950QB | MB-950QB | |
| Panel Net dimensions (WxDxH) | mm | 950x950x50 | 950x950x50 | 950x950x50 | 950x950x50 | 950х950х50 |
| Panel Packaging dimensions (WxDxH) | mm | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 | 1013x1025x123 |
| Panel Net/gross weight | Kg | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 | 5.5/8.0 |
