Pool dehumidifier MBA-G series


Want to buy or have queries?
Pool dehumidifier MBA-G series

MBA-G series pool dehumidifiers absorbs clammy air and transfer it to warm and dry air, Mycond MBA-G dehumidifier can easily tackle problem that cause condensation and furniture corrosion. Moreover, it is a perfect partner of Mycond ventilation system and also capable of working independently on different residential occasions.


Pool dehumidifier, MBA-G series

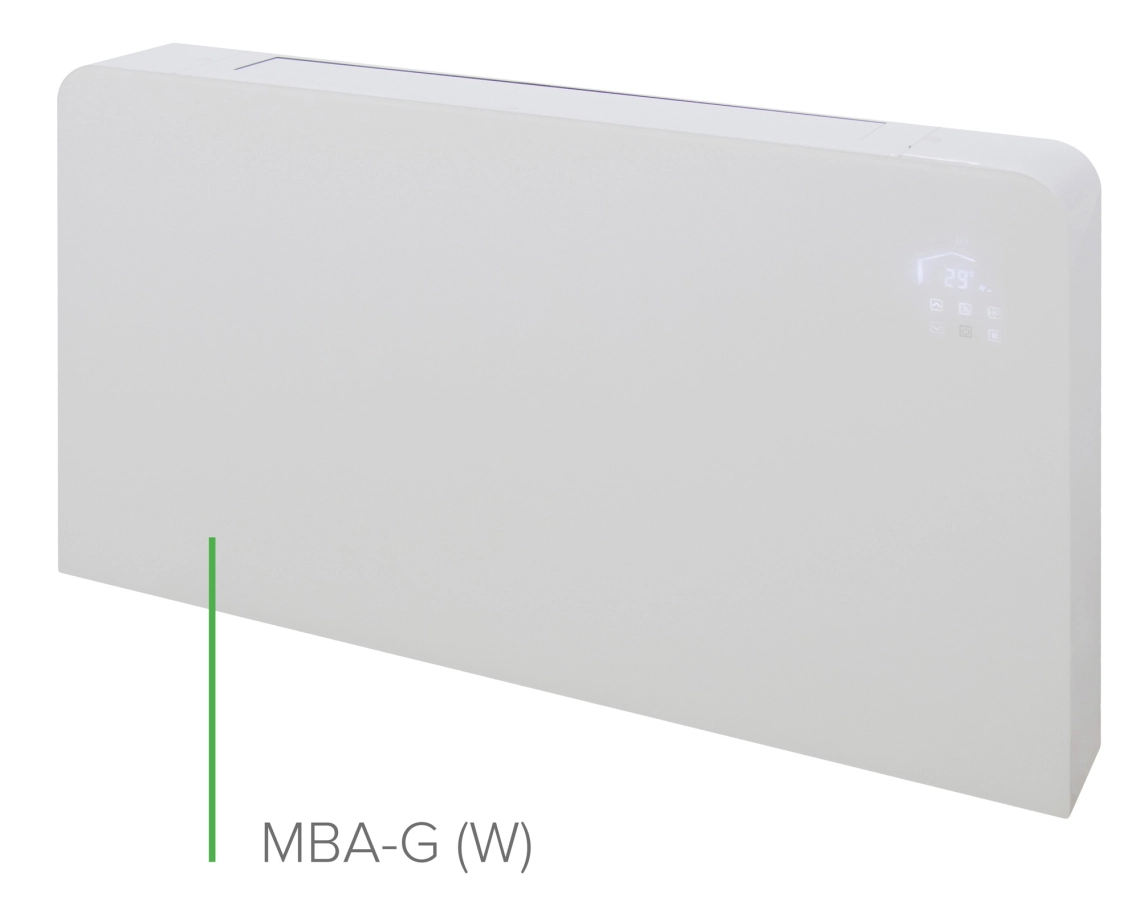

Competitive advantages:

Competitive advantages MBA-G Series

  • High efficiency. The dehumidifier capacity can be up to 4,3 l/hour at ambient air temperature of +30 °C and relative humidity of 80 %.
  • Extremely quiet operation. The dehumidifier circulates the air using a DC fan motor with its noise level as low as up to 46 dB, which means quiet operation.

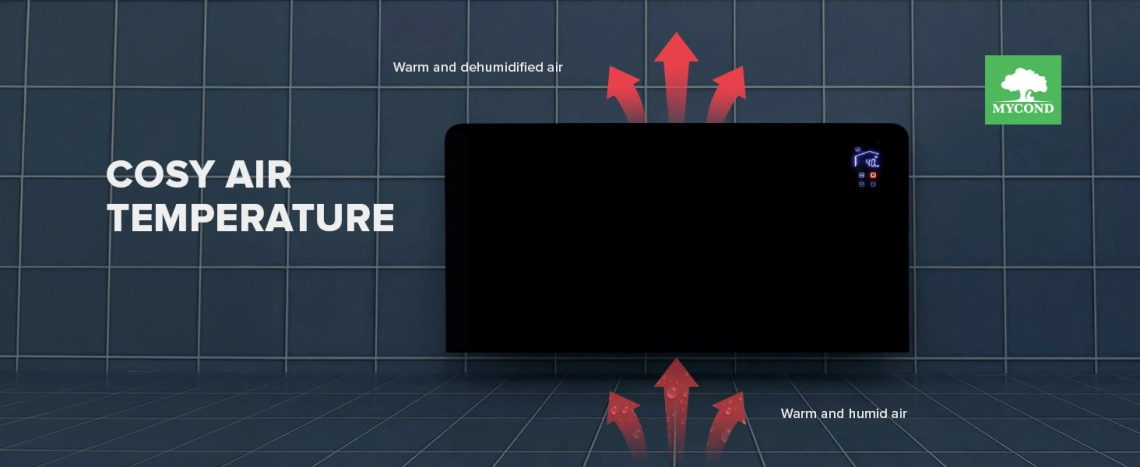

  • Comfortable air temperature

Comfortable air temperature MBA - G Series

The dehumidifier is improved with warm and comfortable air
outlet. To realize that, the unit is equipped with a hot water coil
heater which can connect your own heat source, such as a
heat pump.

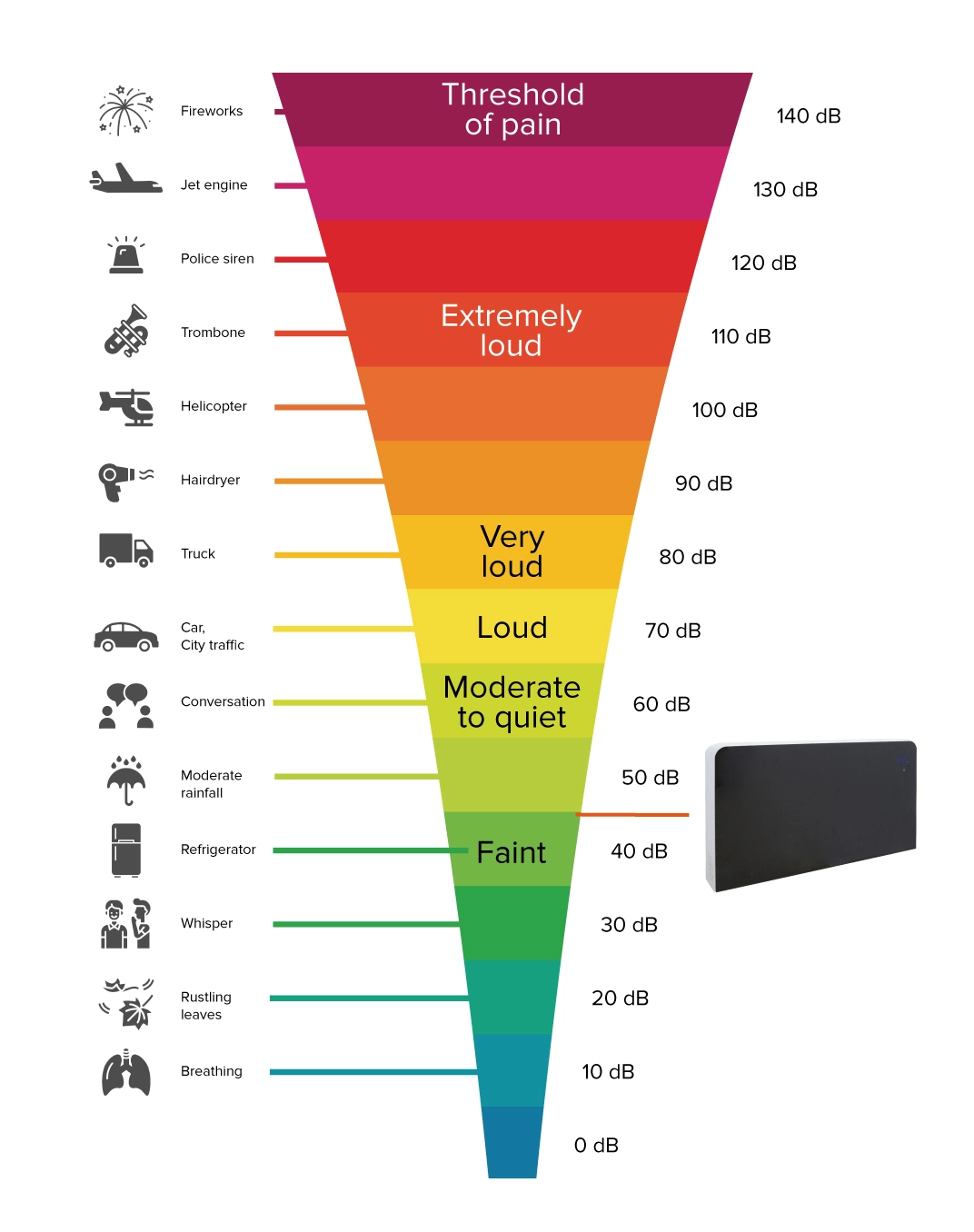

  • Super silent running

    Super silent running MBA - G Series

    Due to a new noise-reduce improvement and DC fan motor adopted for air circulating, the unit works silently at 44-46 dB(A) and the sound is even lower than a moderate rainfall.

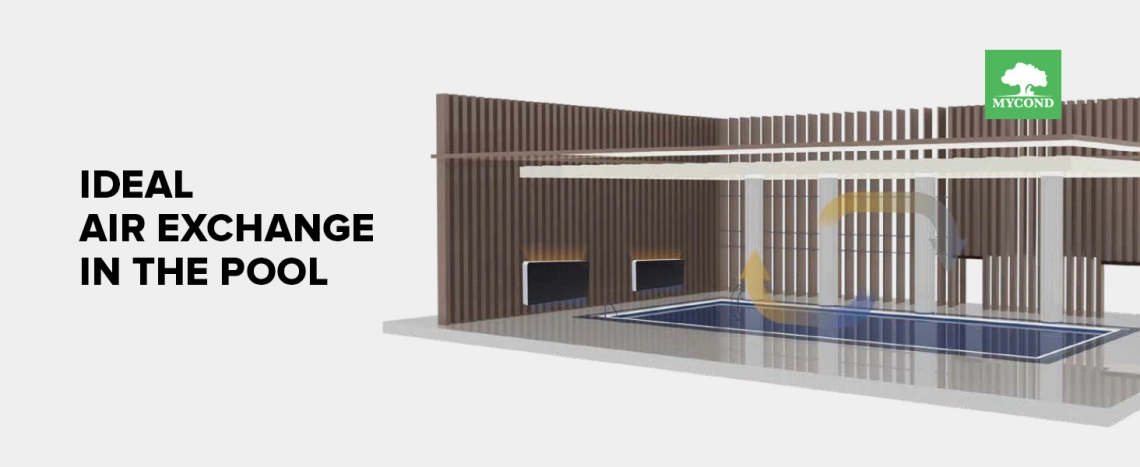

ideal air exchange in the pool MBA-G Series

  • Golden epoxy heat exchange

    Golden epoxy heat exchanger MBA-G Series

The heat exchanger has a golden epoxy coating that has excellent anti-corrosion properties and improves hydrophobicity, which ensures a long service life.



Ultra-slim body MBA-G Series

  • Ultra-slim body. Due to its compact design and ultra-slim body only 248 mm thick, the unit requires little space and will easily fit into any home.
  • Stylish appearance. The dehumidifiers are available in two styles. The customer can choose a body with either white or black glass panel.



Dimensions

Specifications Units MBA05G MBA07G MBA10G
Rated capacity* l/h 2.2 3.5 4.5
Daily moisture removal l 53 84 108
Air flow rate m3/h 450 600 750
Noise level dB(A) 44 44 46
Rated voltage/frequency   220-240 VAC / 50 Hz 220-240 VAC / 50 Hz 220-240 VAC / 50 Hz
Rated power consumption kW 0,89 1,09 1,95
Rated operating current A 4,0 5.0 8,8
Max. power consumption   1,89 2,09 2,7
Max. operating current   9 10 12
Relative humidity % RH 40-90 40-90 40-90
Operating temperature °C 10-32 10-32 10-32
Dimensions (LxWxH) mm 1343х248х790 1543х248х790 1743х248х790
Net weight kg See the rating plate / packing label
Refrigerant    R32
Condensate tube diameter mm 7 7 7

*The capacity is based on the following condition: 30° ambient temperature, 80% relative humidity.
