Modular heat pump Inverter MCU-YHI series

Various applications

This solution is suitable for conventional indoor use, as well as special process and sanitary conditions, cooling only operation, low temperatures and extreme heat, etc. The unit supports a full range of alternative applications.

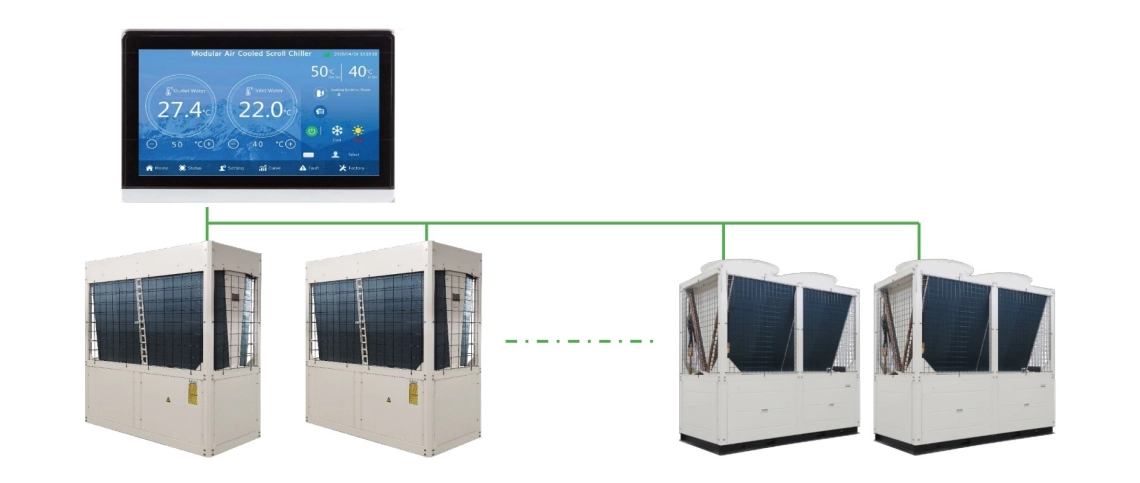

Intelligent combination

Up to 16 fixed-speed modules (YH\YHE) and variable-speed inverter modules can be freely combined. This allows meeting various project demands, such as energy saving.

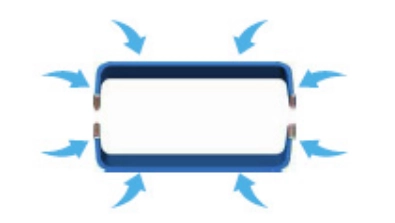

All-round air intake

The heat exchanger is made of two U-shaped parts,

with 45% more area on the air side and uniform all-round air return.

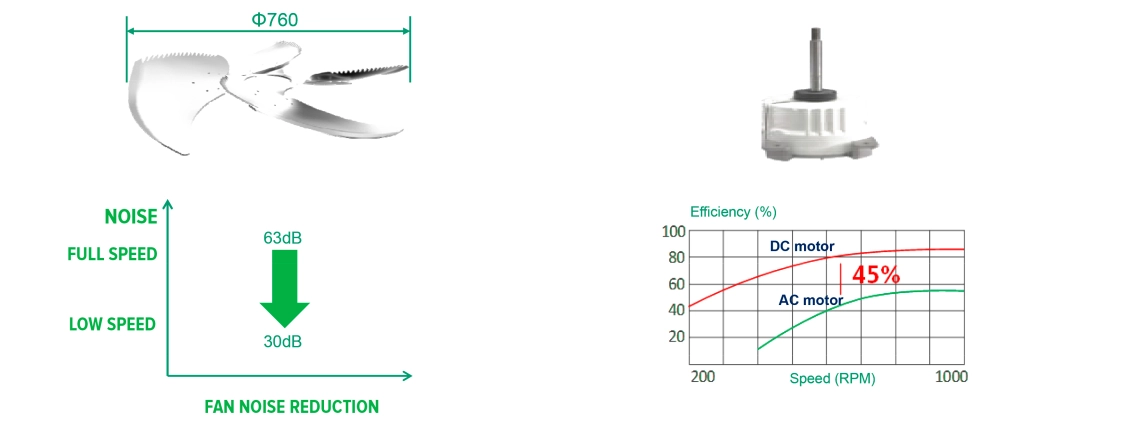

Proprietary drive control program

The unit is driven by a BLDC motor, while the control program with 8,000 counts per second and double filtering prevents power outages at any frequency level.

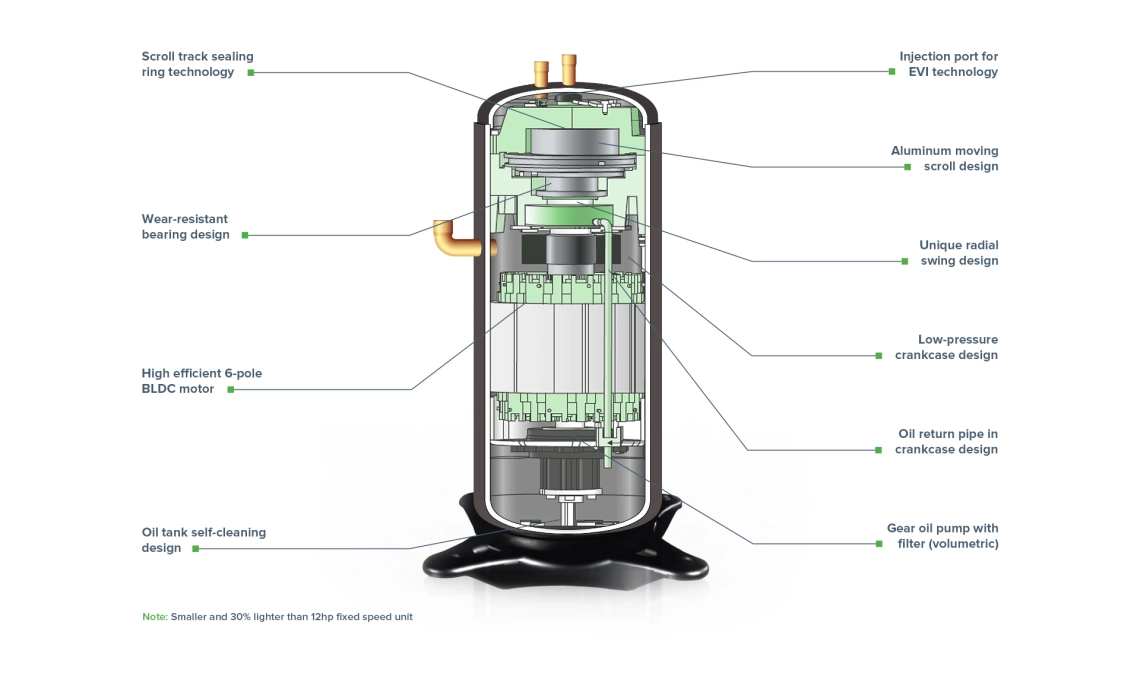

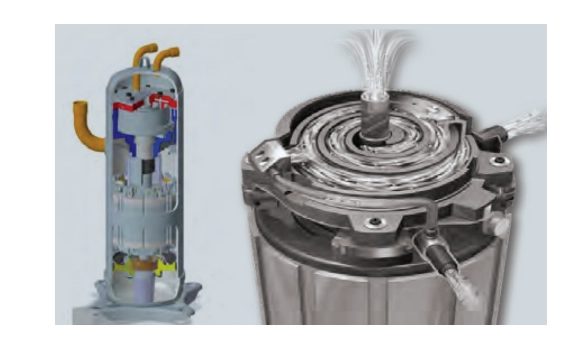

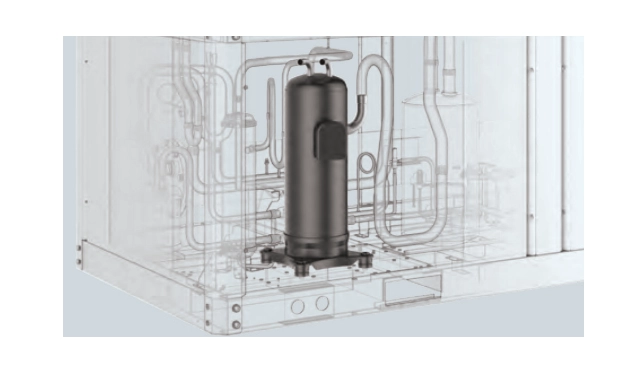

Inverter driven operation and precise output adjustment

The powerful inverter compressor supports stepless adjustment of capacity within 15% to 100%. It also performs well under partial load, avoiding frequent starts and stops. The use of EVI technology enables operation in extreme cold or heat.

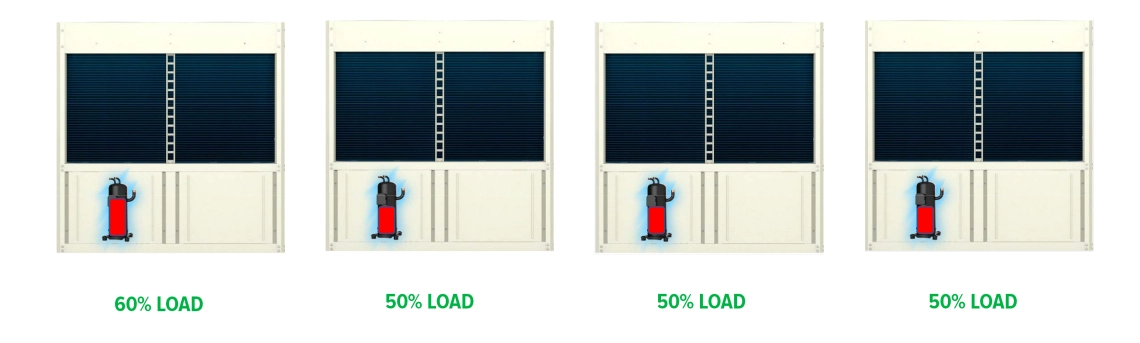

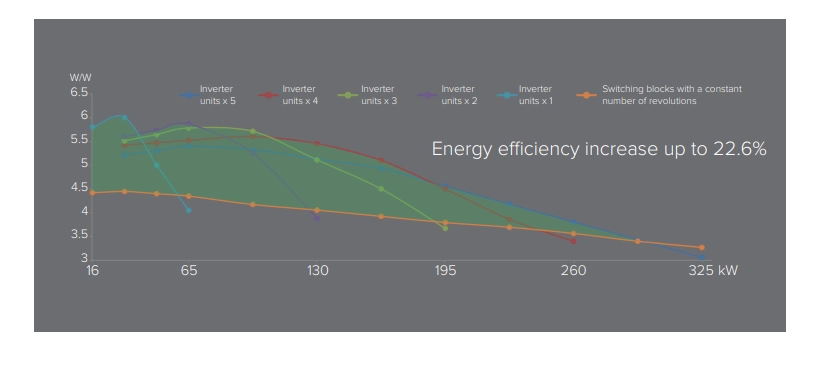

Balancing management

Partial load takes priority during operation. When several units operate together, each compressor is frequency controlled through intelligent management, which ensures balanced operation in the energy-efficient area of the performance curve.

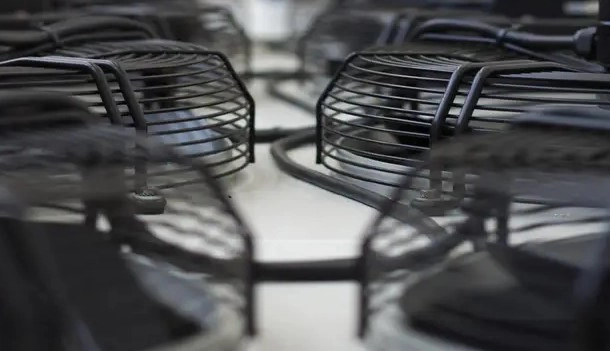

Technological design

• The heat pump components are completely concealed to prevent them from damaging
• Improved heat exchange efficiency thanks to the increased air intake area
• Sheet metal casing painted in ivory colour
• Distinctive inverter design with the technology of enhanced vapour injection (EVI)
• High-efficiency shell-and-tube heat exchanger

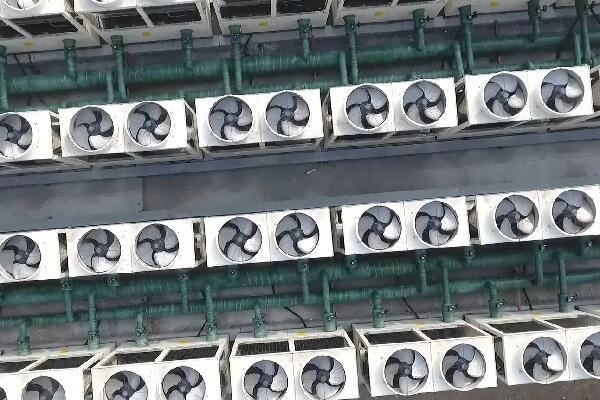

Communication and control features

• Modular design for easy combination of the units

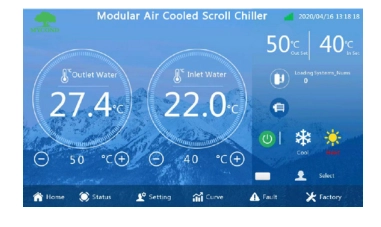

• Easy to use touch control panel (accessory)

• Support of remote control via MODBUS

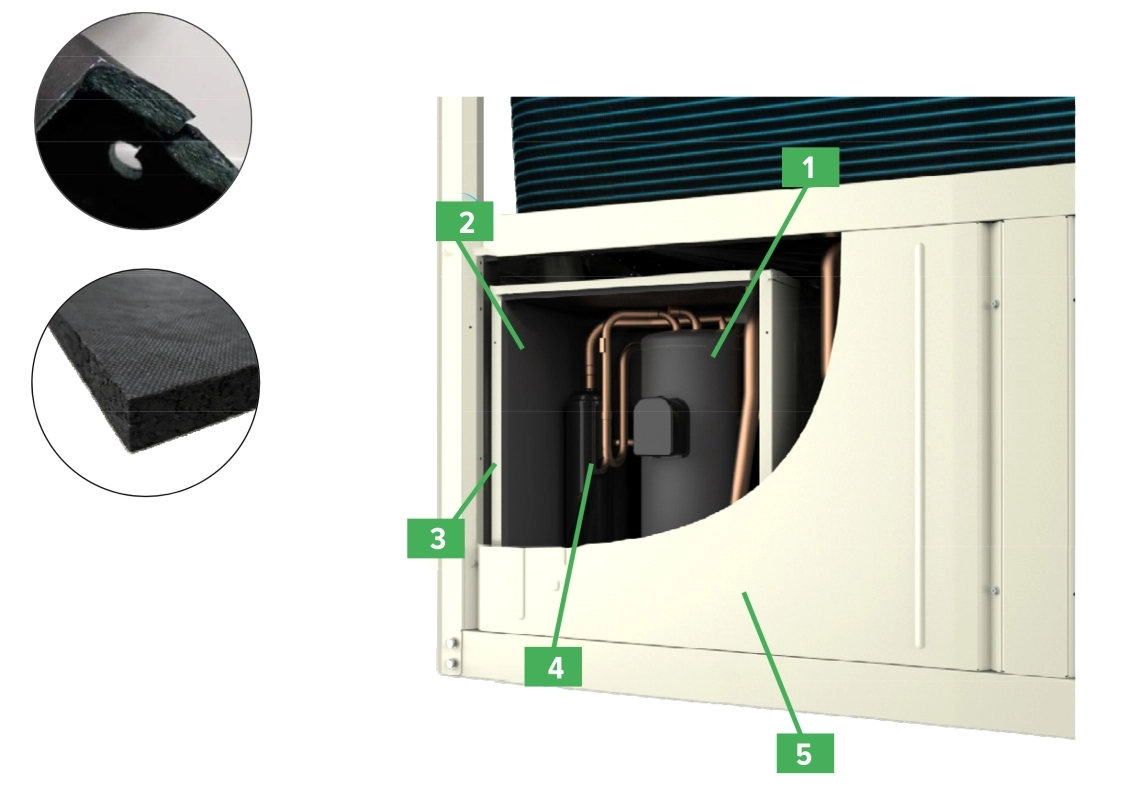

Patented 5-stage sound insulation for compressor room

1. Acoustic block. Green felt with butyl rubber material to frequency noises
2. Ultra-silence acoustic panel absorber. High-density foaming damping material to effectively absorb vibration and noise across frequencies
3. Hermetic soundproof box
4. Suction and discharge copper pipe, oil separator, silencer, etc., placed in the compressor soundproof box
5. Protection panel around the unit to further block noise

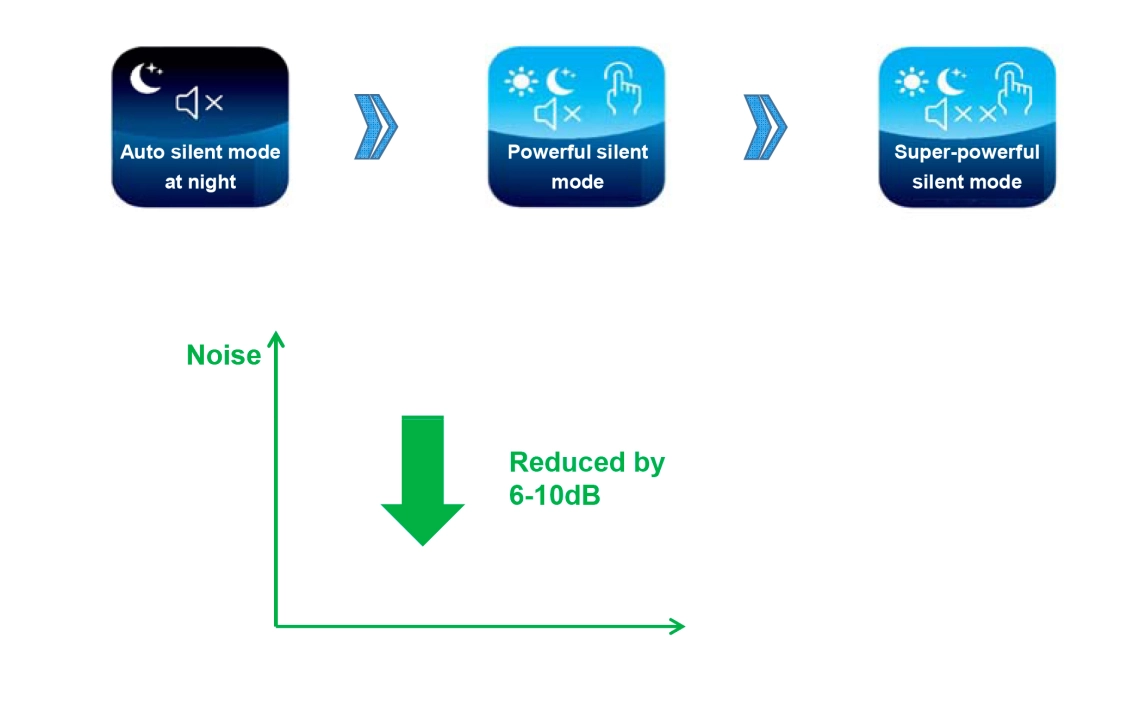

Frequency conversion and noise reduction

Three silent modes selectable
With wired controller settings, the unit automatically limits the operation frequency of the compressor and the fan and actively reduces noise to meet customers' higher requirements.

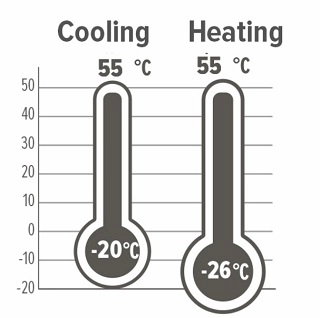

Operation range

Thanks to many years of experience in the development and design of refrigeration equipment, the company has successfully implemented the technology enhaced vapour injection (EVI) and inverter technology and made a breakthrough in the operation of modular heat pumps, the operating range is increased.
