Advantages
- Touch control

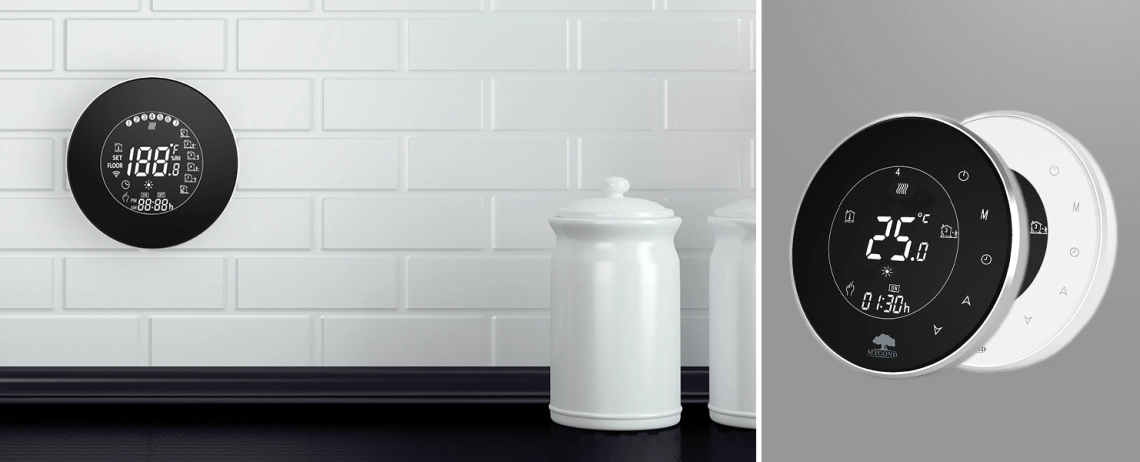

- Large dark display with backlighting
- Temperature adjustment within +5 °C to +35 °C
- Dual temperature control (air and floor temperature)
- Programmable mode
- Freeze and overheat protection
- Floor temperature sensor included
- Lockable control buttons

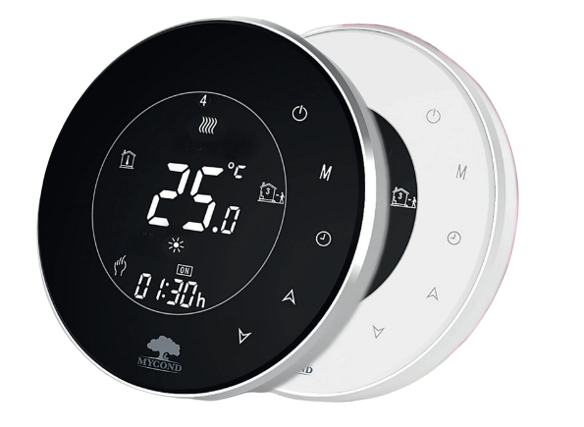

Additional modifications :
- Wi-Fi, wireless control via Mycond SmartApp on smartphone
Specifications
- Accuracy of measurement ± 1 °C
- Adjustable temperature range: 5-35 °C
- Power consumption: < 3 W
- Error: 1%
- Power supply: AC95~240V 50~60Hz
- Load: up to 16A
- Wi-Fi 802.11b
- Dimensions: 86 x 86 x 13.3 mm
- Installation box: 60 mm
- Operating conditions: operating temperature range from 0 to 45 °C, relative air humidity from 5 to 90%

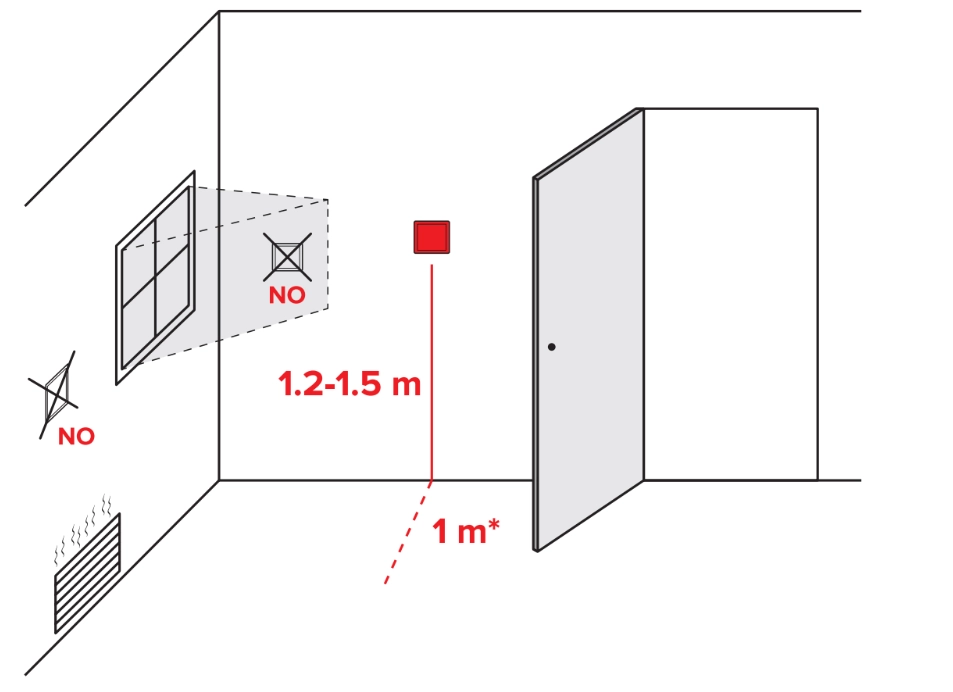

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.
Do not install in locations where the thermostat can be affected by:
- Drafts or dead spots behind doors and in corners
- Hot or cold air from ducts
- Sunlight or radiant heat from appliances
- Concealed pipes or chimneys
- Unheated/uncooled areas such as an outside wall behind the thermostat
