Connection diagrams for fan coil units (~220 V)

Below you can find 2 wiring diagrams for fan coil units, equipped with a 3-speed AC motor (~220V) and normally closed valve(s) with thermoelectrical actuators.

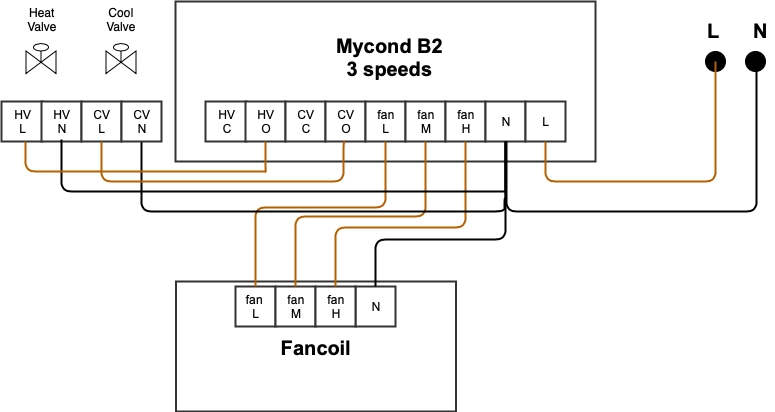

4-pipe system

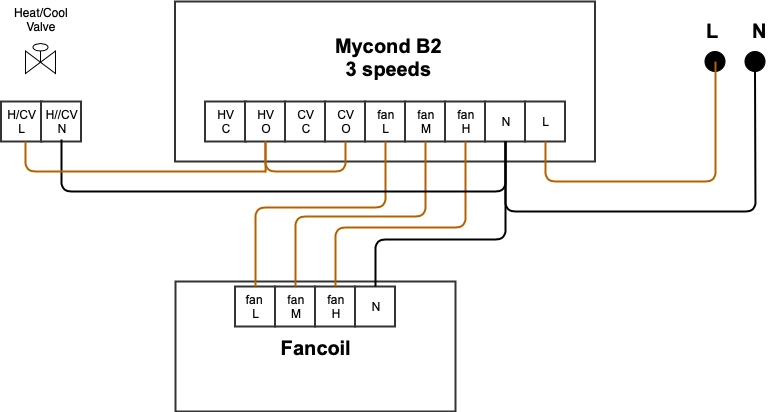

2-pipe system

Install a jumper between terminal HV-O and CV-O.
