Air dehumidifiers MID / MSP series

Air dehumidifiers of MID and MSP series are designed for industrial or pool areas. They are usually installed in the environments like public and private pools, dairy plants, basements, cellars and other applications, where humidity control is essential so that the structure or the goods do not get damaged

Dehumidification capacity: 100 ... 4650 l/day

Want to buy or have questions?

Mycond

Commercial dehumidifiers

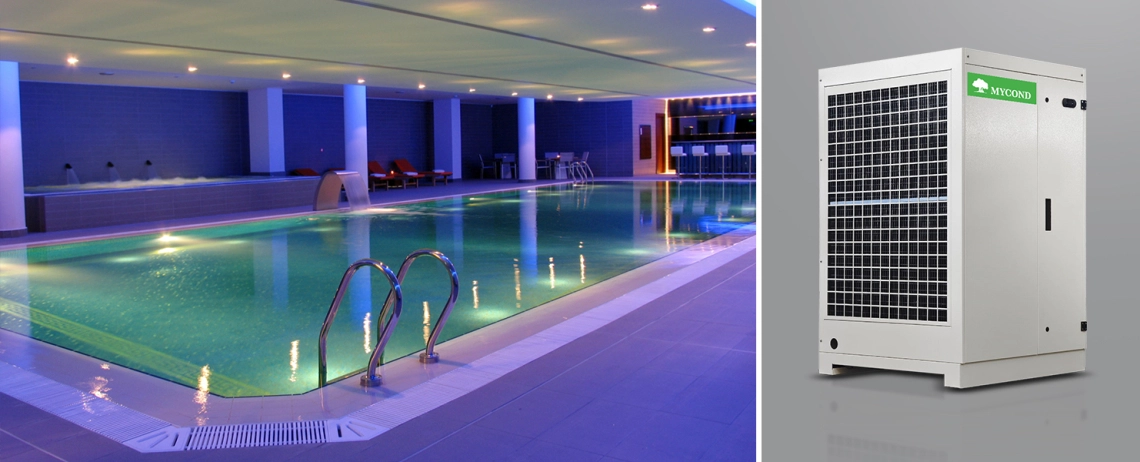

MSP single flow ductable dehumidifier, designed for dehumidification and heating of indoor pools and aggressive ambients.

MyCond MID MSP effective humidity control for commercial facilities

Installation in the room where dehumidification is needed (fixed or movable with pivoting wheels, optional) or in a technical room
Galvanized steel panels, inside and outside painted
Pre-coated finned coils suitable for aggressive environment
Electronical components protected against chlorine
Stainless steel condensate tray
Double inlet centrifugal fan (EC radial fan, opt.) top or in-line supply
Desuperheater for chlorined water

MyCond MID MSP pool dehumidifier

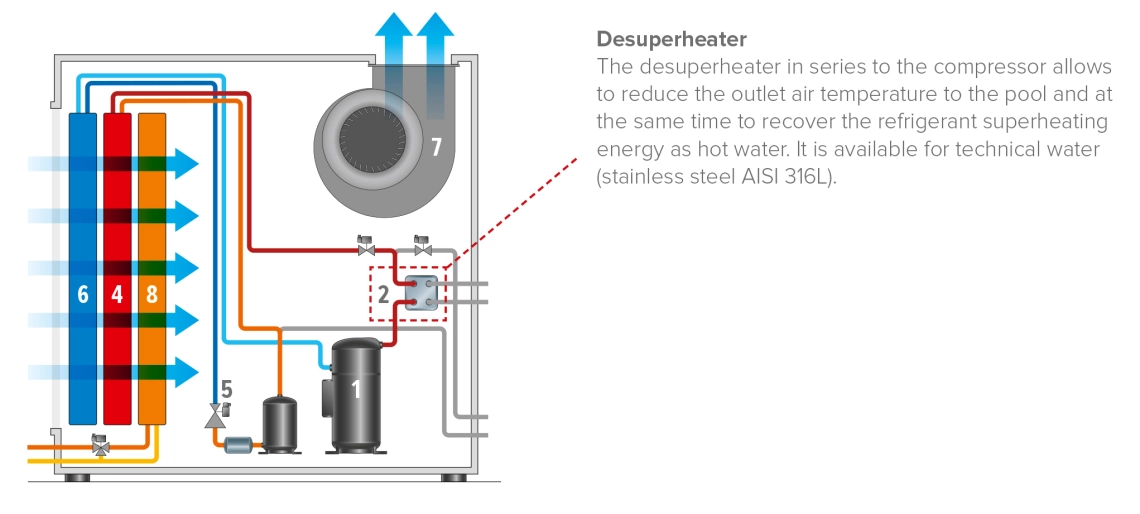

Principle scheme

MyCond MID MSP Dehumidifier with water heating function for swimming pool

Compressor, R410A refrigerant gas
Desuperheater (optional)
Condenser
Thermostatic expansion valve
Evaporator
Fan: direct drive for sizes up to 0950, belt transmission for sizes from 1100; radial EC fan optional
Post-heating or post-cooling water coil with 3 ways valve

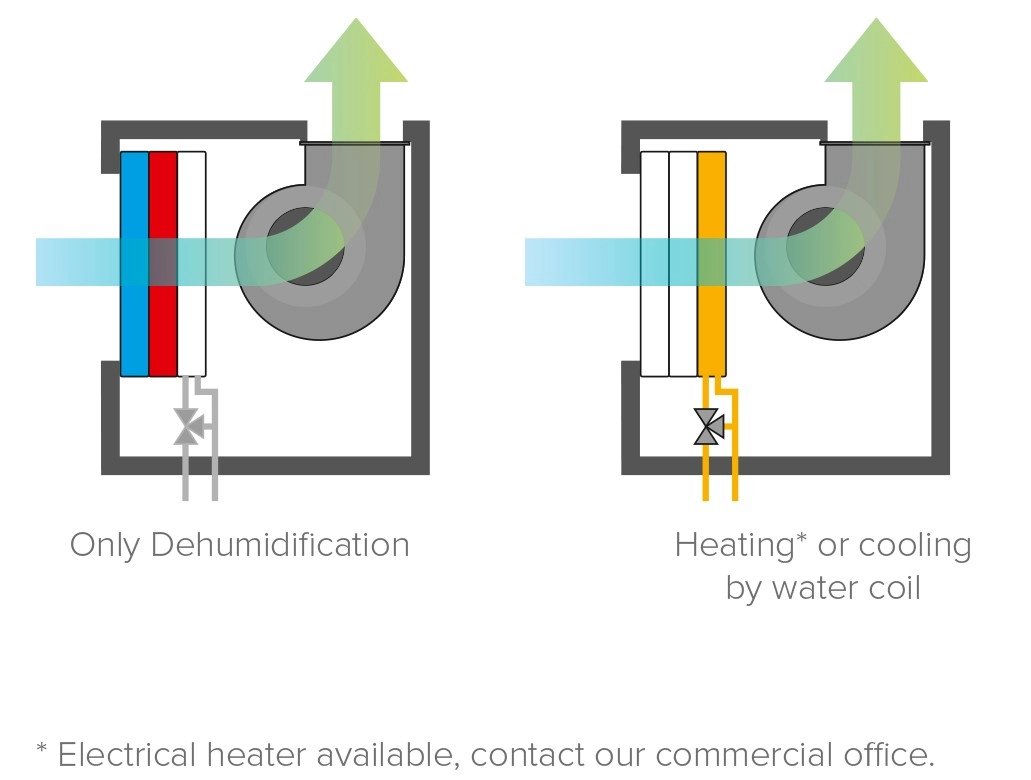

Operating mode

MyCond MID MSP heat recovery unit

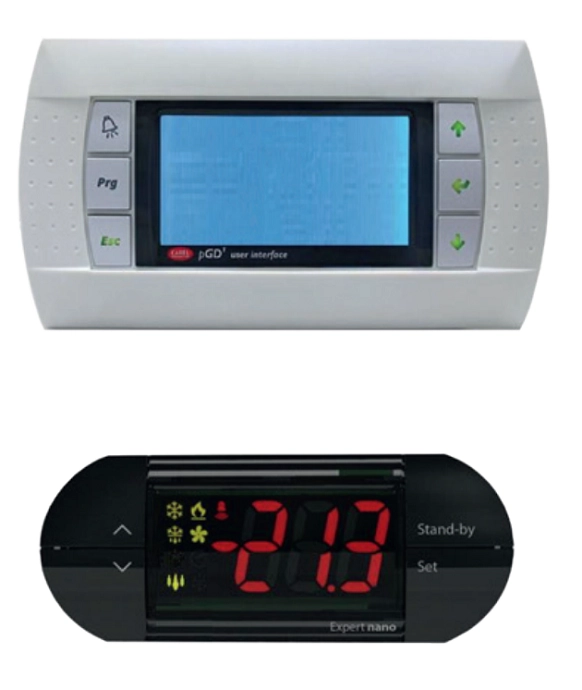

MyCond MID MSP controllers for dehumidifier control

Standart options:

Mechanical humidistat
Filter holder frame for the intake air duct
Electronic chrono-humidistat
Hot/chilled water coil with a 3-way valve
Silent version -2 dB(A)
Soft-starter
Manometers
Hot gas defrost
Swimming pool water desuperheater
Centrifugal fan with high static pressure

Advanced control:

Radial EC fans
0-10 V control terminal
AAC: automatic airflow control
Clock card for time scheduling
Filter clogging sensor
Remote user terminal
TH probe for duct installation
Serial board for Modbus, Lonworks, Bacnet, KNX, Ethernet TM connectivity

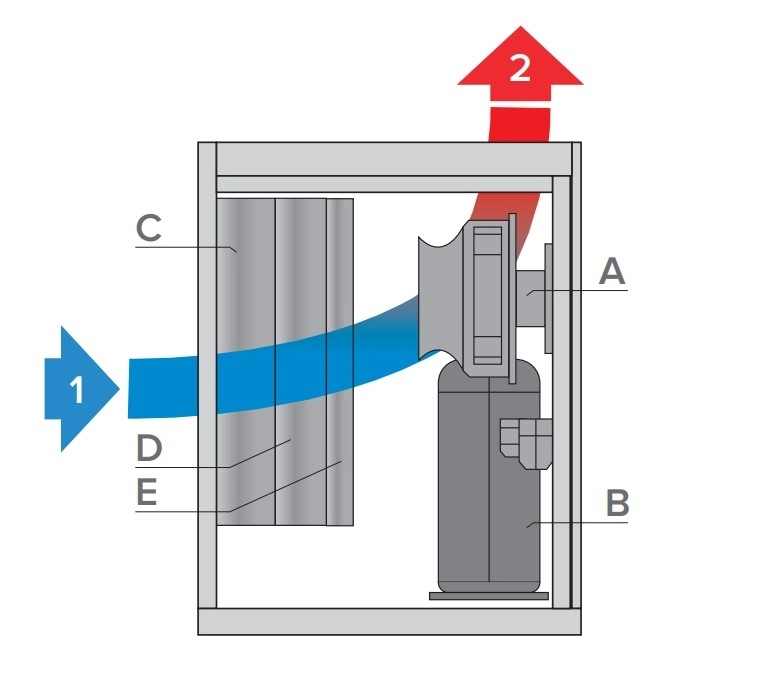

Legend:

А – Fan
B – Compressor
C – Evaporator
D – Condenser
E – Hot water heat exchanger or electric heater (option)

MyCond MID MSP dehumidifier operating principle

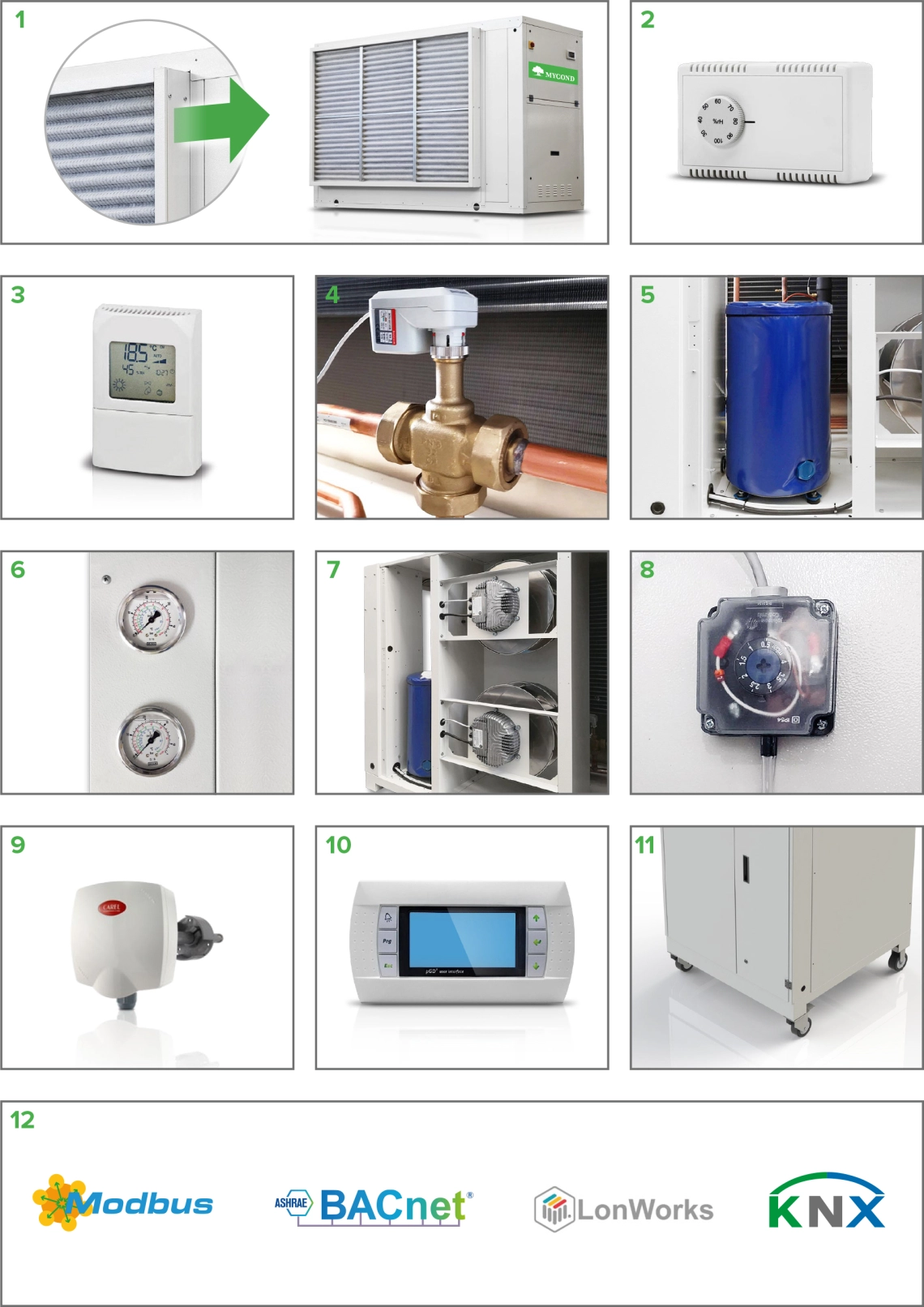

Options:

MyCond MID MSP automation control components

Filter holder frame for suction ducting with G2 or G4 filters (1)
Mechanical hygrostat for wall installation (2)
Electronic chrono – hygrostat (3)
Water coil with modulating three-ways valve(4)

Only heating
Only heating, oversized
Cooling/Heating
Cooling/Heating, oversized

*3, 4 Including condensate tray and insulation

Silent version (5)
Soft-start
Manometers (6)
Hot gas defrost (mandatory in case of air temperature below 8°C)
Desuperheater for technical or pool water (4)
High static pressure centrifugal fan
Radial EC Fan (7)
ACF: Automatic Control Flow; it allows to choose the air flow directly on the display and to keep it also in case of variable pressure drops due to the filters.
Advanced control
Clock card with time scheduling: 2 operating mode (weekday or holiday), 6 time slots per operating mode. Settable parameters: on/off, indoor temperature, indoor relative humidity.
Dirty filters sensor (8)
Temperature and humidity probe for duct installation (9)
Remote user terminal including 20 m cable (10)
Additional thermal insulation, thickness 20 mm or 40 mm
Pivoting wheels (11)
Serial board for BMS (12)

Modbus
LonWorks
BACnet
KNX

Ethernet ™ interface card, protocols available: SNMP v1 & v2c, BACnet / IP, BACnet Ethernet and Modbus TCP / IP
Contact for 0-10 V humidifier control
Version for outdoor installation

Options for special applications

Special coils for aggressive ambient
Stainless steel AISI 316L panels
Technical water condenser
Electric heaters
Pool water condenser

MyCond MID MSP pool heat pump family vacation

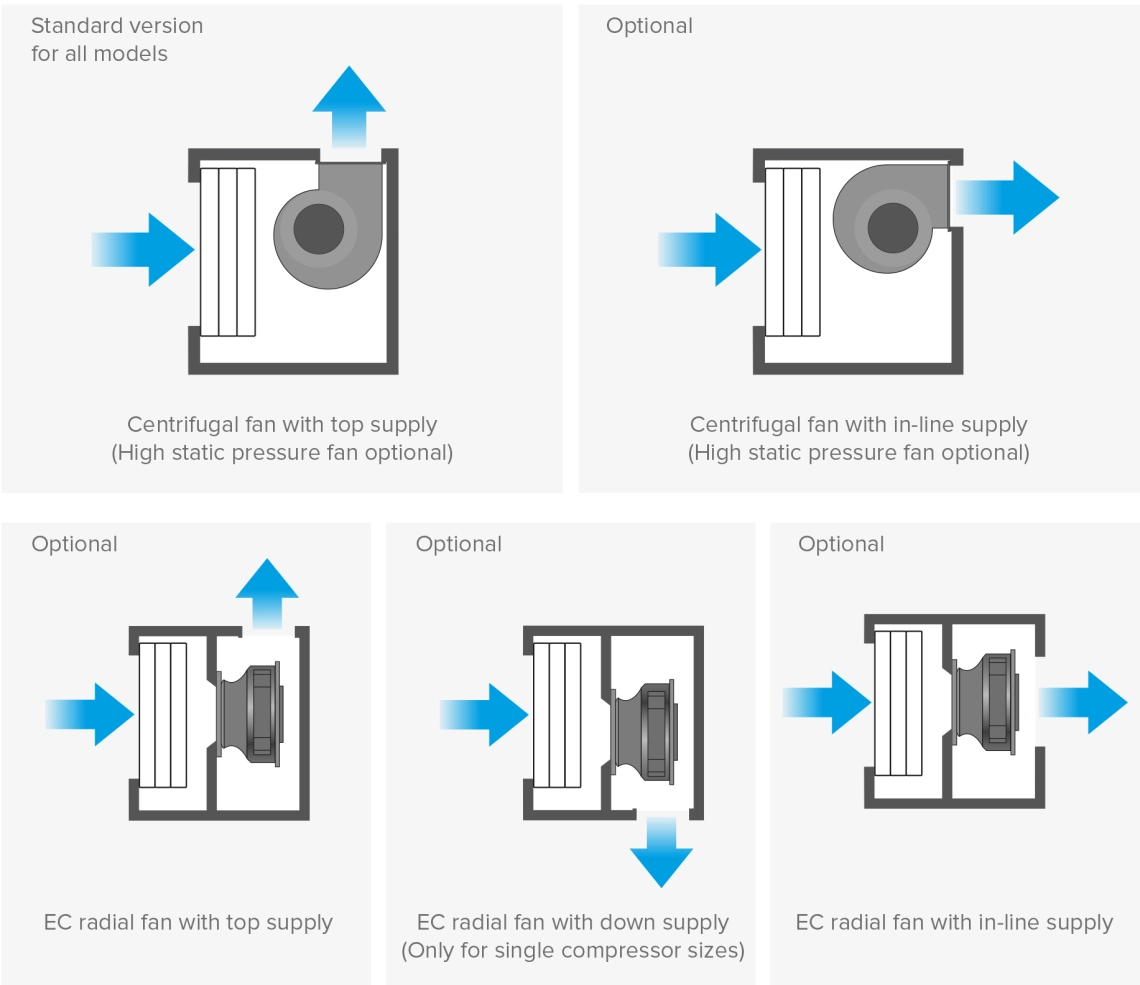

Type of fans

MyCond MID MSP Fan mounting options with EC motor

Seasonal operating mode

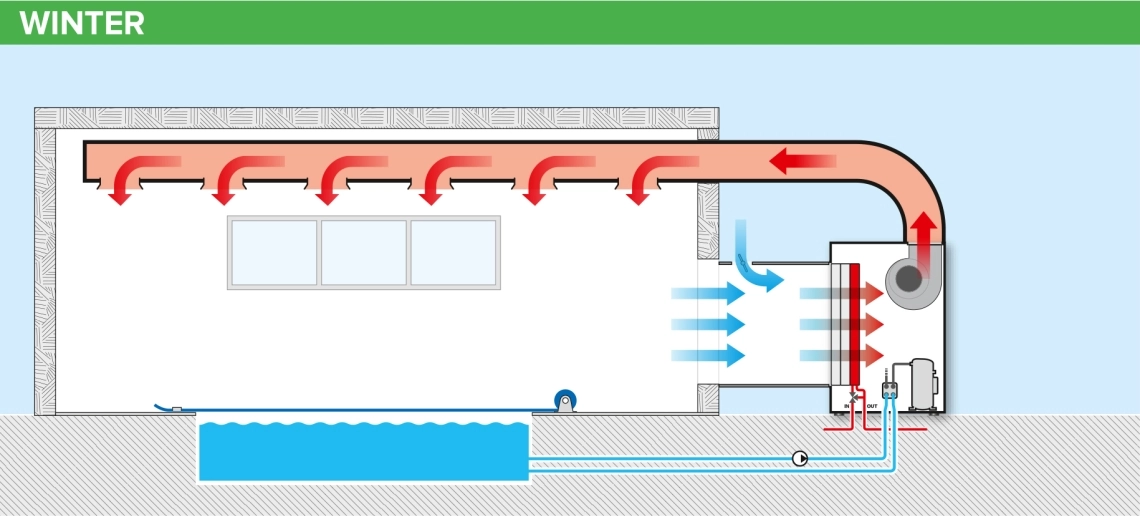

MyCond MID MSP Pool heating in winter with ventilation

WINTER: start up, no occupants, covered pool, heating with hot water coil.
Compressor: OFF
Hot water coil: ON (optional)
Desuperheater: OFF (optional)

MyCond MID MSP Pool heating and ventilation in winter

WINTER: normal operation, pool open, dehumidification.
Compressor: ON
Hot water coil: OFF (optional)
Desuperheater: OFF (optional)

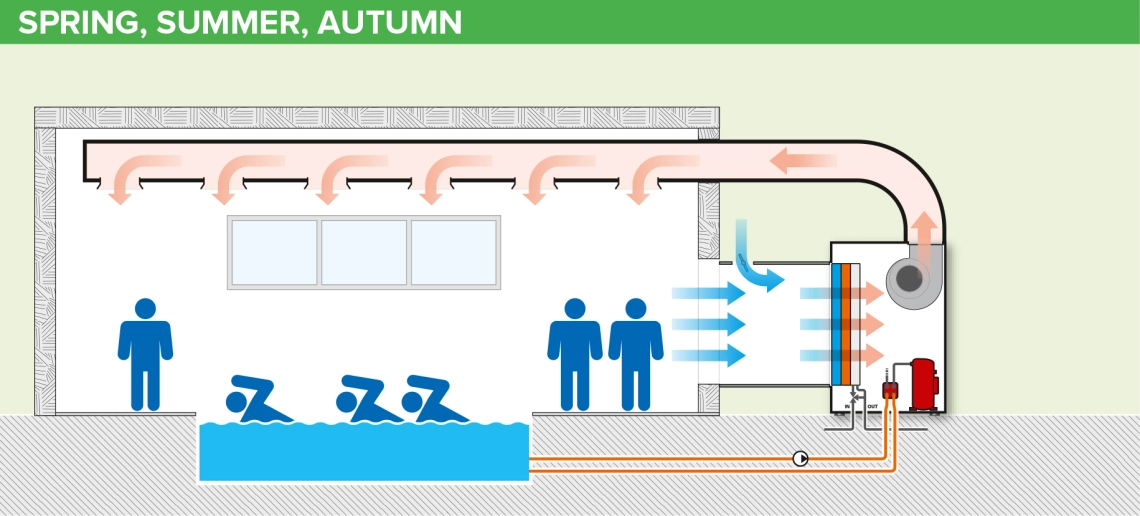

MyCond MID MSP Swimming pool ventilation in the warm season

SPRING, SUMMER, AUTUMN: normal operation, pool open, dehumidification with heat recovery (desuperheater)
Compressor: ON
Hot water coil: OFF (optional)
Desuperheater: ON (optional)

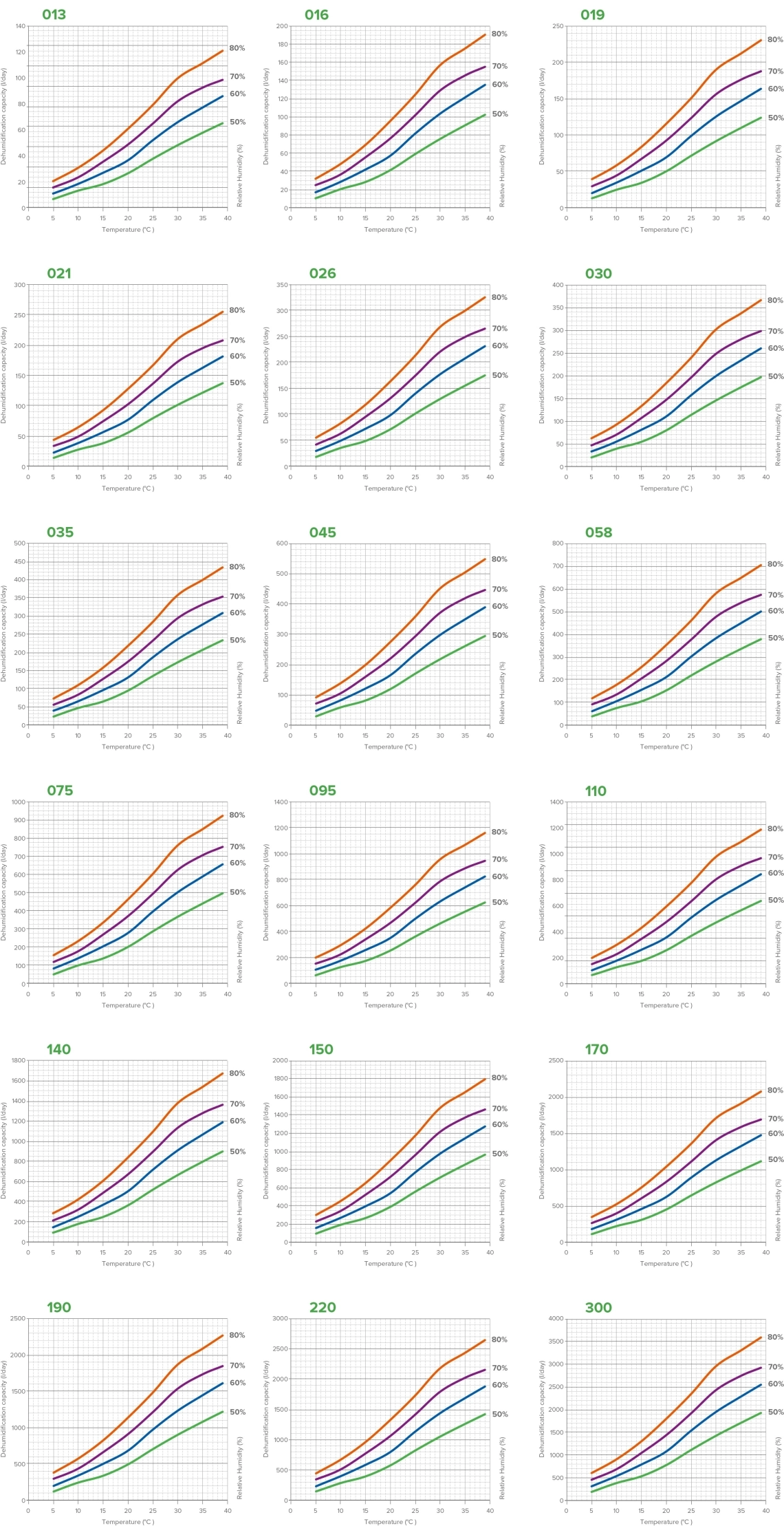

Perfomance graph

MyCond MID MSP Dehumidifier performance graphs

Dimensions

Specifications	Units	MID - MSP 010	MID - MSP 013	MID - MSP 016	MID - MSP 019	MID - MSP 021	MID - MSP 026	MID - MSP 030	MID - MSP 035	MID - MSP 045	MID - MSP 058
Dehumidification capacity	l/day	100	128	157	190	210	268	302	358	452	581
Air flow rate	^m3/h	900	1200	1600	1600	2000	2800	2800	3800	4000	4800
Water heater capacity	kW	5,5	9,8	9,8	9,8	16,5	17	17	26,5	26,5	27
Electric heater capacity	kW	upon request
Power supply	V / phases / Hz	230/1/50	230/1/50	230/1/50	230/1/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
Dimensions (WxLxH)	mm	700х550х900				700х850х900			830х850х1350

Specifications	Units	MID - MSP 075	MID - MSP 095	MID - MSP 110	MID - MSP 140	MID - MSP 150	MID - MSP 170	MID - MSP 190	MID - MSP 220	MID - MSP 300	MID - MSP 450
Dehumidification capacity	l/day	760	955	1120	1380	1480	1710	1870	2180	2960	4650
Air flow rate	^m3/h	7000	8200	11000	12500	13000	15000	15000	17000	25000	35000
Water heater capacity	kW	48	55	76	83	98	107	107	118	168	235
Electric heater capacity	kW	upon request
Power supply	V / phases / Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3+N/50
Dimensions (WxLxH)	mm	1000х1400х1350		1000х1950х1640		1000х1950х1640				1000х3390х 1640	1000x4430х 2380

All the data refer to: air temperature 30 °C, relative humidity 80%, water temperature 80/70 °C

Note:
MID – standard (industrial) version
MSP – pool water version
